Kuzar Tower Lift K-50
Kuzar Tower Lift K-50
The lifting tower undergoes a very strict quality control process during manufacture.

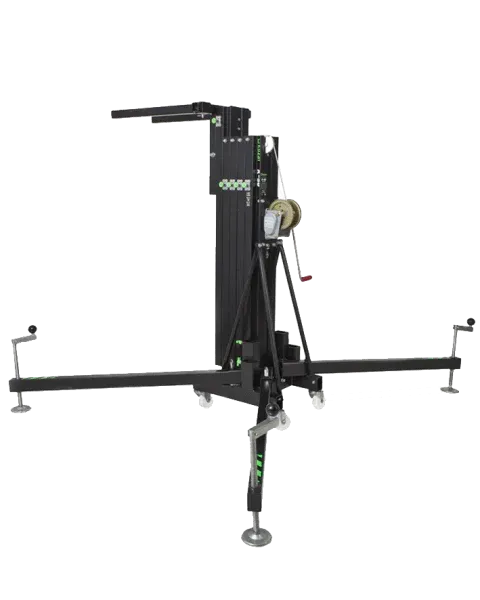

This is our classic tower 'COMPACT' K-50. It not only surpasses its predecessor with a height of 5.95 m but also incorporates new features such as the 'Block' & 'Lift' positions of the 'KAT' locks (See the User Manual) that can block the sections automatically while raising the tower. It also protects your cargo in the unlikely event that the 6mm diameter cable breaks.
Features:
- Cable: Anti-torsion & Anti-corrosion. 6mm diameter. Steel DIN 3060. Tensile strength 180 kg/mm2.
- Winch: Certified with an automatic brake a long handle
- Wheels: Make the transportation easier
- Anti-rust protection priming paint bathed black steel, covered with cured polyester dust
- Kuzar Automatic Trigger (KAT) on each section which automatically slots into the sections during elevation, locking them in place. 'Block' position and 'Lift' position are featured.
- Adjustable stabilizer plates in the legs with nonslip rubber base support
- Made in Spain
Specifications:
- Folded Height: 1.57m (5.15')
- Maximum Height: 5.95 m (19.52’)
- Maximum Load: 300kg (661.4 lb)
- Minimum Load: 25kg (55 lb)
- Weight: 164kg (361.56lb)
- Work Surface: 1.91m x 2.15m (6.26’ x 7.05’)
- Folded Base Area: 60 cm x 45 cm (1.97’ x 1.48’)
- Construction Material: Aluminum Profiles 6082T6
Why Kuzar K-50?
As a viable and affordable alternative to the Genie lift ST-25, the Kuzar K-50, made in Spain, is a high-quality lifter that is virtually invisible to audiences thanks to its black anodized finish that blends in perfectly backstage.
The lifter with built-in safety features is easy to transport and set up, making your theatrical productions and entertainment events safe and highly effective. Look no further than K-50 if you are looking for a great and economical tower lift.
