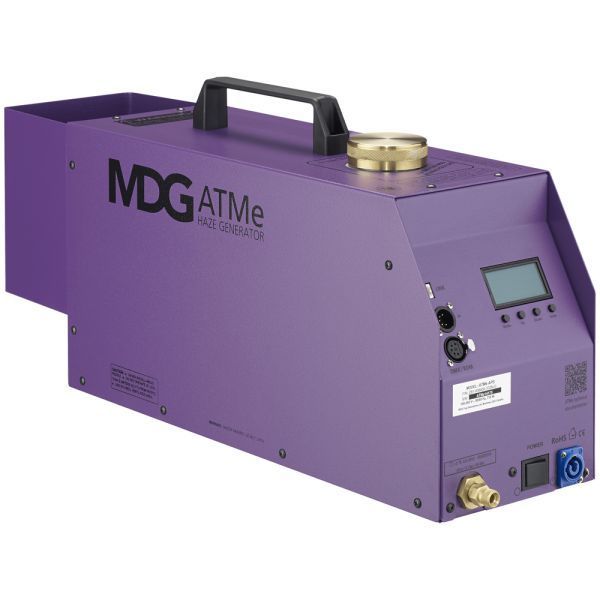

MDG ATMe Haze Machine

The MDG ATMe is a cutting-edge 715W oil-based haze machine that excels in generating pure white, non-toxic haze, ideal for enhancing visual effects in live performances, theaters, and events. Designed with an emphasis on safety and reliability, the ATMe can operate continuously at a 100% duty cycle as long as fluid is available, ensuring that operators have a consistent haze output throughout their productions. One of its standout features is the Automatic Purging System (APS), which effectively purges the heating module after the initial heating cycle and after every haze emission, preventing any residual buildup and clogging that could affect performance over time.

The ATMe is engineered to produce an incredibly fine and almost invisible mist that beautifully highlights laser and light beams, making it a perfect choice for stage and event applications where visibility of light effects is crucial. The machine boasts variable output control, allowing users to adjust the haze intensity from 0% to 100% using a DMX or RDM device. At the core of the ATMe is an advanced electronic assembly that maintains the heat exchanger's temperature within a narrow margin, employing three electronic fail-safe systems to protect against overheating, under-heating, and component failure. If the internal temperature exceeds 60°C (140°F), a safety circuit is activated to cut power to the heating elements, ensuring safe operation. Additionally, a pressure relief valve prevents over-pressurization, further enhancing the safety of this high-performance haze generator.

The ATMe features a user-friendly 4-button LCD interface, providing easy access to the control menu and status display. It supports three standard USITT DMX512 channels, equipped with XLR-5 connectors and RDM compliance for versatile control options. The machine operates extremely quietly, with a noise emission level of just 45.4 dB at 1 m (3.3 ft) in standard mode. For even quieter operation, the theater mode adjusts fan speed according to haze output levels, making it suitable for sensitive environments like theaters and concert halls. Impressively, the ATMe has one of the lowest fluid consumption rates on the market, using only 55 ml (1.86 oz) of fluid per hour at 1.38 bar (20 psi), which translates to a total running time of approximately 46 hours from its 2.5 L (0.66 US gallon) reservoir.

In terms of physical specifications, the ATMe measures 27 inches in length, 7 inches in width, and 12 inches in height, with a weight of 37 lbs. When packaged with its flight case, the shipping weight increases to 67 lbs. The machine operates on a voltage range of 100 - 250 VAC, 50/60 Hz, and comes with certifications from CB, CSA, UL, and CE Declaration, ensuring compliance with international safety standards. Overall, the MDG ATMe is the ultimate choice for professionals seeking a high-quality haze generator that delivers exceptional performance, reliability, and flexibility in a compact and stylish design.

Features

• 715W oil-based haze machine capable of generating pure white, non-toxic haze continuously with a 100% duty cycle.
• Equipped with Automatic Purging System (APS) to prevent residual buildup and clogging.
• Produces an ultra-fine mist that enhances the visibility of laser and light beams.
• Variable haze output control from 0% to 100% via DMX or RDM device.
• Advanced electronic assembly with three fail-safe systems for overheating, under-heating, and pressure relief.
• 4-button LCD user interface for easy navigation and control.
• Supports three standard USITT DMX512 channels and includes XLR-5 connectors, RDM compliant.
• Noise emission of 45.4 dB (A) at 1 m (3.3 ft), with a theater mode for quieter operation.
• Low fluid consumption of only 55 ml (1.86 oz) per hour, allowing for a total running time of 46 hours from a full 2.5 L (0.66 US gallon) reservoir.
• Physical dimensions: Length: 27 inches, Width: 7 inches, Height: 12 inches, Weight: 37 lbs.
• Shipping weight with flight case: 67 lbs.
• Operates on 100 - 250 VAC, 50/60 Hz, with multiple safety certifications: CB, CSA, UL Certified, and CE Declaration.

Specifications

General

• Fluid consumption: 110 ml (3.72 oz) per hour at 2.76 bar (40 psi)
• CO2 consumption: 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
• Reservoir capacity: 2.5 L (0.66 US gallon)
• APS (Automatic Purging System): Standard
• Haze colour: Pure white
• Particle size: 0.5 - 0.7 micron
• Total running time: 23 hours at 2.76 bar (40 psi) with a full tank
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
• Power consumption: 715 W
• Noise emission: 45.4 dB (A) at 1 m (3.3 ft)

Dimensions

• Length: 27 inches
• Width: 7 inches
• Height: 12 inches
• Weight: 37 lbs
• Shipping weight: 67 lbs (with flightcase)
• Approval: CB, CSA and UL Certified. CE Declaration
