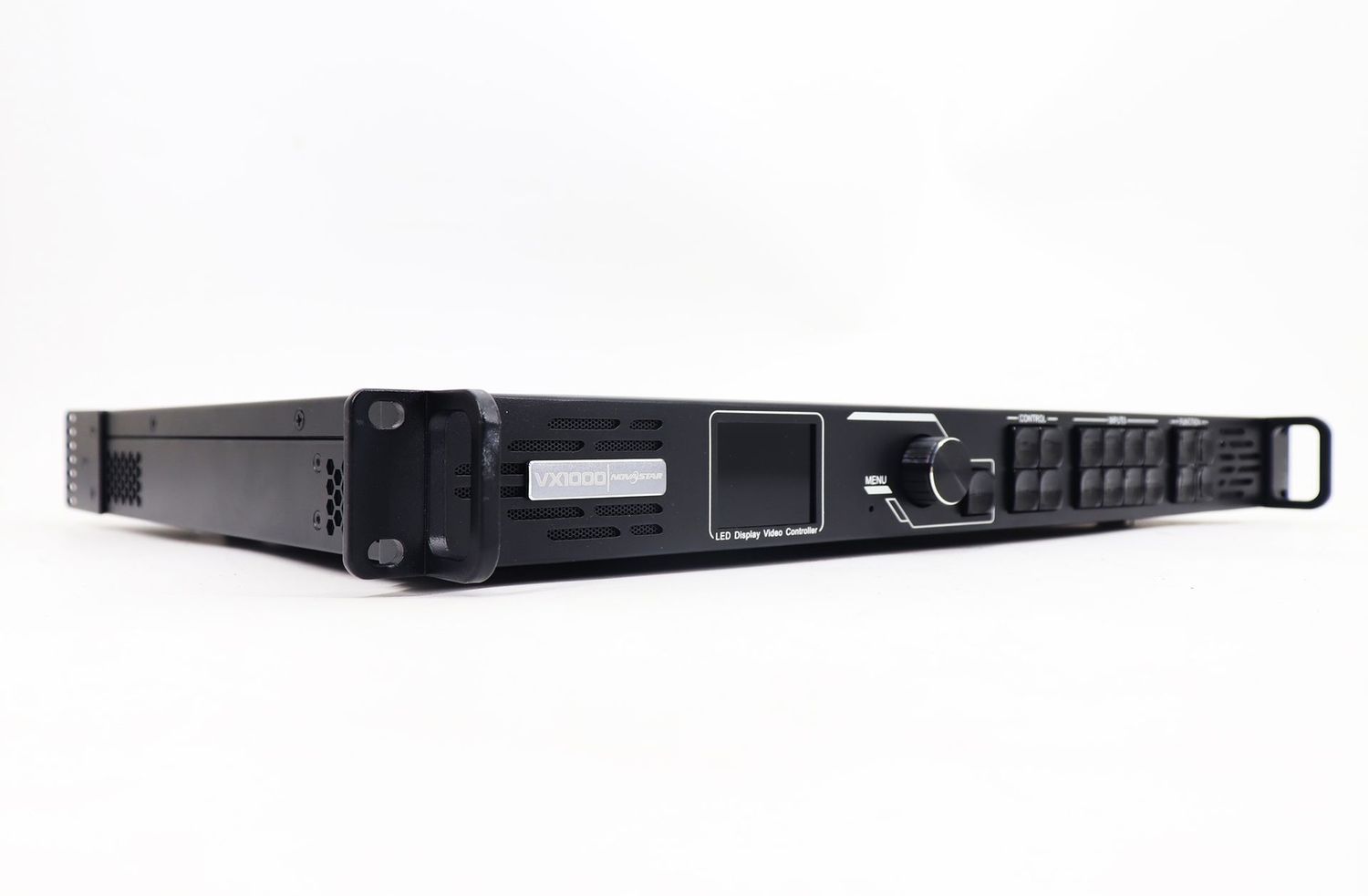

Novastar VX1000 All-in-One LED Screen Controller + Scaling

Novastar VX1000 All-in-One LED Screen Controller with Sharp Price Some features：

1)Input connectors

− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1x DVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)

2)Output connectors

− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet ports. OPT 2 copies or backs up the output on 10 Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output

3)Self-adaptive OPT 1 for either video input or sending card output

Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.

4)Audio input and output

− Audio input accompanied with HDMI input source
− Audio output via a multifunction card
− Output volume adjustment supported

5)Low latency

Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.

6)3x layers

− Adjustable layer size and position
− Adjustable layer priority
